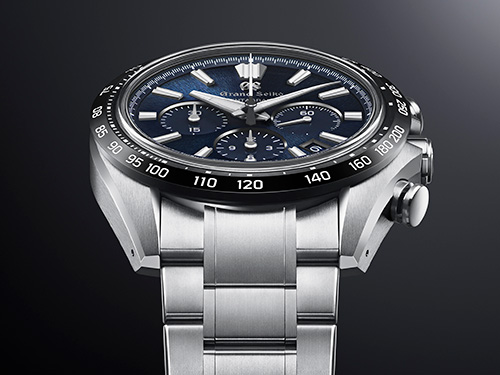

Last year, at Watches and Wonders Geneva, Grand Seiko introduced its first mechanical complication and a series of sports watches from the Evolution 9 Collection. Today marks a new milestone as Grand Seiko expands its Evolution 9 sports watch offering with its first mechanical chronograph, the Tentagraph.


Just like every Grand Seiko creation, the pursuit of precision is at the heart of the new Tentagraph, whose chronograph movement features the revolutionary high-beat Caliber 9SA5 as its base. Like Caliber 9SA5, the new Tentagraph Caliber 9SC5 beats ten times per second, ensuring high accuracy when measuring elapsed time as well as the time of day. And, thanks to its energy-efficient escapement and two barrels, the watch runs for three days even when the chronograph is in operation, making the Tentagraph the 10-beat chronograph with the longest power reserve in the industry today.* Furthermore, the Tentagraph is subjected to a new and longer testing procedure. As with all Grand Seiko mechanical movements, the Tentagraph’s time-of-day accuracy is assessed in six positions and at three temperatures over 17 days but, in addition, there are three more days of testing during which the accuracy is assessed in three positions while the chronograph is in operation. Thus, in total, each Tentagraph movement is tested for 20 days to ensure that it meets the Grand Seiko Standard of +5 to -3 seconds per day.


With the new Tentagraph, Grand Seiko adds a new dimension to its range of sports watches and opens a new chapter in its history.
*As of March 2023. Based on Grand Seiko’s research.

Shop Grand Seiko Watches at Manfredi Jewels

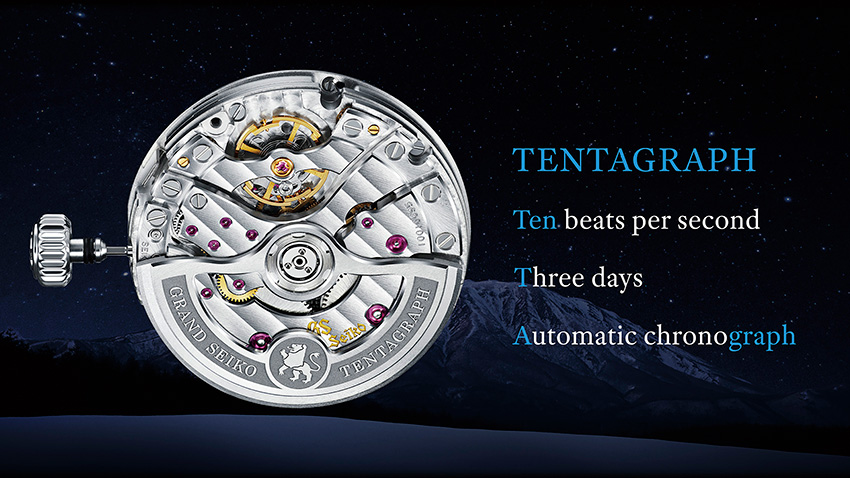

The Tentagraph’s name describes its high-beat rate, its long power reserve, and its automatic chronograph function.

Incorporating Grand Seiko’s finest mechanical watchmaking technology

Shop Grand Seiko Watches at LaViano Jewelers

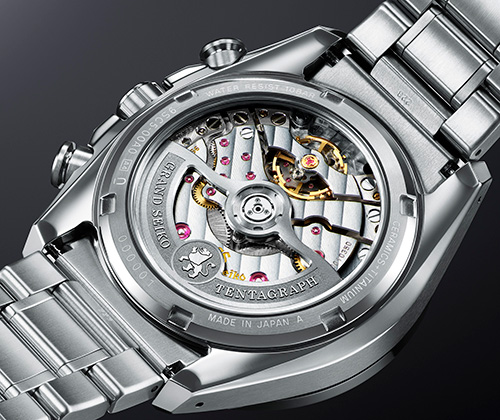

The movement’s beautiful finishing as observed through the exhibition case back.

The new movement features the revolutionary Dual Impulse Escapement, which efficiently transfers energy to the free-sprung balance wheel indirectly through the pallet fork and also directly from the escape wheel. MEMS technology ensures extremely precise, lightweight, and highly durable escapement parts and also endows the escapement with increased energy efficiency to achieve a long power reserve.


Hallmarks of a high-quality modern chronograph, a vertical clutch and a column wheel ensure high accuracy and operability. The vertical clutch eliminates any shuddering or jumping of the hands when the chronograph is engaged and enhances measurement accuracy, while the column wheel delivers precise control of the chronograph operation. The movement incorporates a three-pointed hammer, which ensures that, when the reset pusher is pressed, the hands return to zero instantly and in perfect synchronization.


An Evolution 9 sports watch true to the ideals of Grand Seiko

Shop Grand Seiko Watches at LaViano Jewelers
The Zaratsu polished, distortion-free mirror finish and delicate hairline finish alternate, giving the case the harmonious glow characteristic of the Evolution 9 Style.
Shop Grand Seiko Watches at Manfredi Jewels

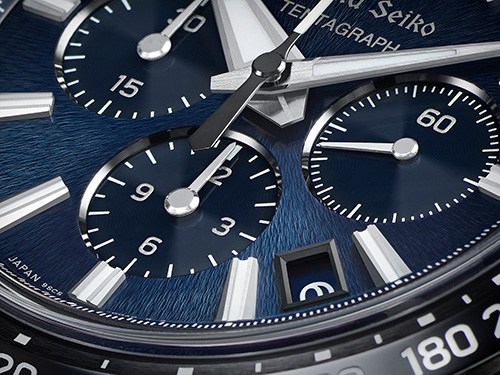

The chronograph features a running seconds sub-dial at the three o’clock position, a 30-minute chronograph counter at nine, and a 12-hour chronograph counter at six.
The ideals of a Grand Seiko sports watch are readily apparent in this new chronograph. The powerful hands and prominent, grooved indexes of the Evolution 9 Style ensure supreme legibility. The chronograph seconds hand is gently curved down towards the dial so that the tip of the hand is as close as possible to the dial's markers and extends to the markings at the very edge of the dial. The minute hand is also gently curved to ensure the legibility of the time of day.
Shop Grand Seiko Watches at Manfredi Jewels

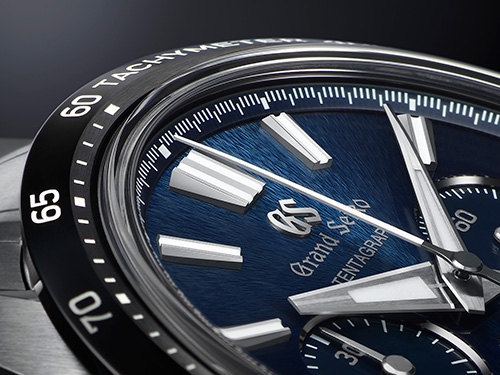

The bezel is made of ceramic to protect the watch from scratches and enhance durability.
Shop Grand Seiko Watches at LaViano Jewelers

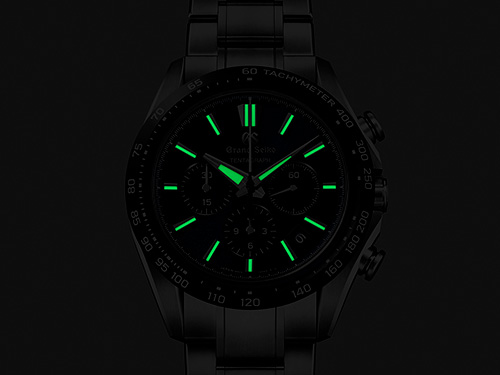

The hands and indexes are coated with Lumibrite, further enhancing nighttime legibility.

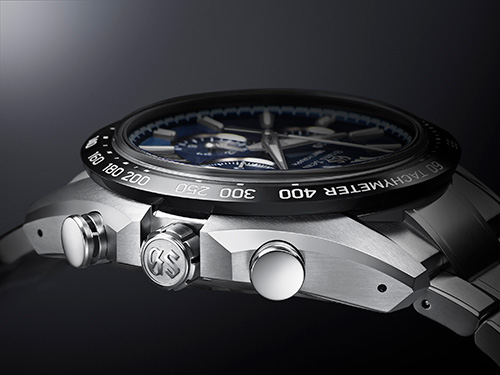

The case and bracelet are made of high-intensity titanium, which is about 30% lighter and more scratch resistant than stainless steel to maximize durability, and the two convex pushers ensure the operability required for measuring elapsed time at the highest level.
Shop Grand Seiko Watches at Manfredi Jewels
The watch’s curved profile, wide lugs, and low center of gravity
ensure supreme comfort on the wrist.

A dial inspired by Mt. Iwate

Shop Grand Seiko Watches at LaViano Jewelers
The intricately textured dial, prominent indexes, and recessed sub-dials
add substantial depth and legibility to the design.

The dial features Grand Seiko’s signature “Mt. Iwate pattern,” which takes inspiration from the ridged contours of the nearby mountain visible through the windows of the Grand Seiko Studio Shizukuishi, where the Tentagraph and all other Grand Seiko mechanical watches are hand-assembled and adjusted. The Mt. Iwate dial first appeared in 2006, and the pattern has since become deeply associated with Grand Seiko mechanical watchmaking. The majestic peak serves as an enduring inspiration for Grand Seiko, and its choice for the brand’s first mechanical chronograph is both symbolic and fitting. Combined with the gentle blue hue, the dial takes the imagination upwards towards the night sky above Mt. Iwate.


The Grand Seiko Tentagraph joins the Evolution 9 Collection and will be available at the Grand Seiko Boutiques and select retail partners starting in June 2023.

 Shop Grand Seiko Watches at Manfredi Jewels

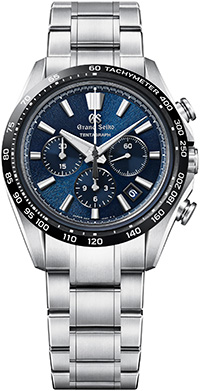

SLGC001

Grand Seiko Evolution 9 Collection
Tentagraph: SLGC001

Caliber 9SC5

  • Driving system: Automatic
  • Frequency: 36,000 vibrations per hour (10 beats per second)
  • Accuracy (mean daily rate): +5 to -3 seconds per day
  • Power reserve: 72 hours
  • Chronograph with 30-minute counter at 9 o’clock and 12-hour counter
  • at 6 o’clock
  • Number of jewels: 60
  • Diameter: 33.0mm, Thickness: 8.0mm

Specifications

  • High-intensity titanium case and bracelet
  • Box-shaped sapphire crystal with anti-reflective coating
  • See-through screw case back. Screw-down crown.
  • Water resistance: 10 bar
  • Magnetic resistance: 4,800 A/m
  • Diameter: 43.2mm, Thickness: 15.3mm
  • Three-fold clasp with push button release
